Yttrium Aluminum Garnet Wafer YAG Ingots Er:YAG Ce:YAG Nd:YAG Yb:YAG

Name: Yttrium Aluminum Garnet Wafer YAG Ingots ErYAG CeYAG NdYAG YbYAG
Brand: zmkj
Price: 1 USD

Wholesale Yttrium Aluminum Garnet Wafer YAG Ingots Er:YAG Ce:YAG Nd:YAG Yb:YAG from china suppliers

Brand Name : zmkj

Model Number : YAG Ingots

Place of Origin : China

MOQ : 10kg

Price : by case

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 500pcs

Delivery Time : 3-4weeks

Packaging Details : single wafer case under 1000 cleaning room

material : YAG Single crystal

size : 2inch

Thermal conductivity : 7.4 W·m-1·K-1

Spectral Range : 400~1100nm(but not 470~500nm)。

Product Name : Yttrium Aluminum Garnet

Doping : Er:YAG Ce:YAG Nd:YAG Yb:YAG

Contact Now

10x10mmt Terbium gallium garnet (TGG)crystals substrate wafer for laser device

Product Type: Yttrium aluminum garnet (YAG) is an isotropic crystal with cubic symmetry. It has excellent optical and thermodynamic properties. Its mechanical properties and chemical stability are close to that of sapphire crystal, and there is no birefringence effect of sapphire. Pure YAG crystals have a high transmittance in the range of 0.25 ~ 5um and no absorption in the range of 2 ~ 3μm, while glass has a strong H2O absorption band. Therefore, undoped pure YAG crystals are a new type of substrate and window materials for ultraviolet and infrared optical devices. At the same time, the excellent physical and chemical properties and optical properties of YAG crystals make them important optical applications in high temperature and high energy physical environments.

The application of YAG material:

Undoped pure YAG crystal is a new type of substrate and window material for ultraviolet and infrared optical devices.

YAG crystals have important optical applications in high-temperature and high-energy physical environments.

The application of YAG material:

It has excellent optical and thermodynamic properties. Its mechanical properties and chemical stability are close to that of sapphire crystal, and there is no birefringence effect of sapphire. Pure YAG crystals have a high transmittance in the range of 0.25 ~ 5um and no absorption in the range of 2 ~ 3μm, while glass has a strong H2O absorption band.

The main performance parameters
Crystal structure	Cubic
Lattice Constant	12.02 A
Melting point	1970 ℃
Mohs hardness	8.5
Density	4.55 + 0.04g/cm3
Specific heat	0.59J/g cm? -3 @0-20 ℃
Modulus of elasticity	310 GPa
Young's modulus	3.17x10 4 Kg/mm2
Poisson ratio	0.3
Tensile strength	0.13-0.26GPa
Thermal expansion coefficient	[111]: 7.8x10 -6 /℃ @0-250℃ [110] : 7.7x10 -6 / ℃ @0-250℃ [100]: 8.2x10 -6 / ℃ @0-250℃
Thermal conductivity	14W/m/K@20 ℃ 10.5W/m/K@100 ℃
Calorescence coefficient	Dn/dt = 7.3x10-6 /℃
Thermal shock	800W/m
Refractive index	1.8197@1064mm
Transmittance range	250-5000nm (Without absorption in 2000 - 3000 nm)
Anti-optical-damage threshold	≥ 15Jcm -2 @1064nm
Standard Orientation	<111> and <100>

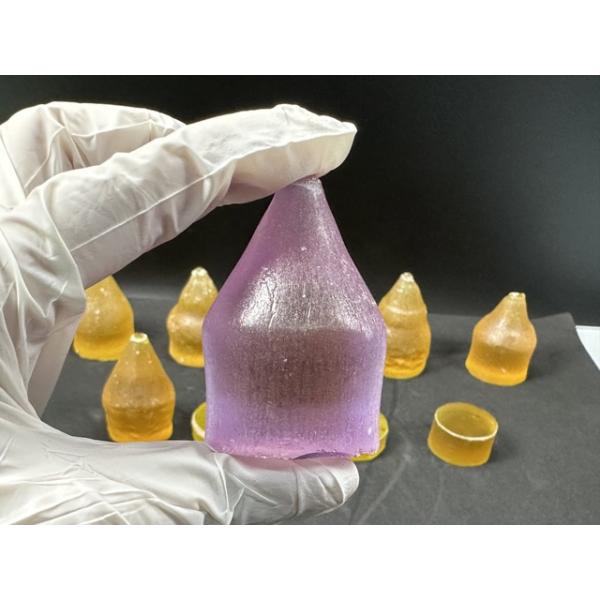

Some leftover YAG crystal anchorage

We also can offer Er:YAG, Ce:YAG, Nd:YAG, Yb:YAG, and others
